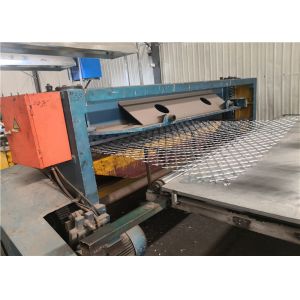

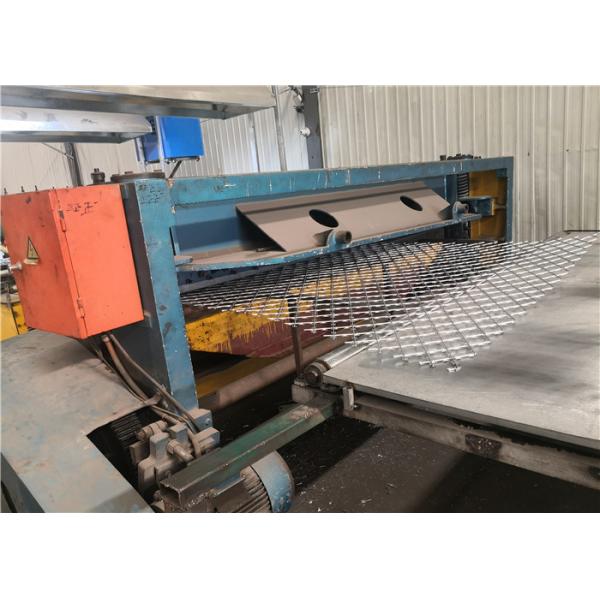

Full Automatic Concertina Blade Wire Machine , Razor Blade Machine High Efficiency
Concertina Wire Machine Features
1. High efficiency:can produce the steel belt 80kgs per hour.
2. It is low to loss, the raw materials loss of the old model is 40%, and JC-9 type drops to 15%.
Concertina Wire Making Mahcine Advantage
Concertina Blade barbed wire, also known as blade barbed wire and
blade barbed wire, is a new type of protective net. The blade
barbed wire has excellent characteristics such as beauty, economy
and practicality, good anti-blocking effect, and convenient
construction. At present, the blade barbed wire has been widely .
Concertina Wire Machine Description
Concertina razor wire machine with one strip is light-style,easy to operate,convenient to maintain,competitive price.

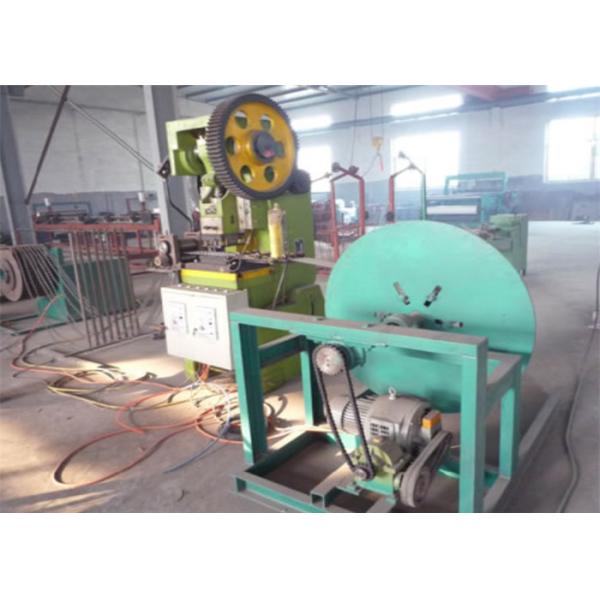

The machine is made of two parts.One is the main machine,which produce the blade,and the other is the coiling machine which coil the wire.
Concertina Wire Making Machine Specification
Model | 25T | 40T | 60T | Coiling machine |
Voltage | 380V/50HZ or according to client's voltage | |||
Power | 2.2kw | 2.2kw | 7.5kw | 1.5kw |
Producing speed | 220- 280m | 220- 280m | 220- 280m | 2tons / 8hours |
Pressure | 25ton | 25ton or 40ton | 60ton | - |
Thihckness of sheet | 0.5± 0.05mm | 0.5± 0.05mm | 0.5± 0.05mm | - |
Diameter of inner wire | - | - | - | 2.5mm |
Materil of sheet | galvanized | galvanized or ss | galvanized or ss | - |
Concertina Wire Machine Making Different Type
We provides razor barbed wire machine to produce different sizes of
razor wires.It is equipped with cutters of 5 different shapes.
Razor barbed wire coil diameter: 450mm; 500mm; 700mm; 960mm.
Razor barbed wire material: Galvanized wire and stainless steel
wire.
| A1 | ![]() | . Thickness:0.5mm . Wire Dia.:2.5mm . Barb Length:10mm . Barb Width:13mm . Barb Spacing:26mm |
| A2 | ![]() | . Thickness:0.5mm . Wire Dia.:2.5mm . Barb Length:20mm . Barb Width:15mm . Barb Spacing:33mm |
| A3 | ![]() | . Thickness:0.5mm . Wire Dia.:2.5mm . Barb Length:15mm . Barb Width:15mm . Barb Spacing:33mm |
| A4 | ![]() | . Thickness:0.5mm . Wire Dia.:2.5mm . Barb Length:22mm . Barb Width:16mm . Barb Spacing:36mm |
| A5 | ![]() | . Thickness:0.6mm . Wire Dia.:2.5mm . Barb Length:60mm . Barb Width:22mm . Barb Spacing: 102mm |
| Coil Dia.(mm) | 500 | 700 | 960 | 450 |
| Number of Circles | 56 | 72 | 52 | 33 |
| Standard Covered Length (m) | 8-9 | 11-13 | 8-10 | 8 |
| Maximal Covered Length | 12 | 15 | 13 | 12 |


|
