Promotional Activities Of Automatic Chain Link Fence Making Machine

Chain Link Fence Making Machine Specification

Chain Link Fence Machine Information

Our wide range of automatic chain link machines are equipped with heavy duty motors,

Mitsubishi PLC and Schneider electricals are capable of running 24x7 even in commercial quality wires.

3 Lock types: Knuckle-knuckle, Knuckle-twist, Twist-twist.

Production: 2-2.5 Tonnes/-Day

　1. Chain link machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sized. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.
　2. The chain link is automatically wound to form rolls when the desired length is manufactured.
　3. The machine is controlled by PLC automatic controller, so only one person is needed to operate it.
　4. One side or both sides of the end of net hole is twisted or with burr in edge.
　5. Use compacting machine to make it into rolls.

Chain Link Fence Making Machine Models As Following

Chain Link Fence Making Machine Technical Parameter

1. Width scope of weaving: 1--4m; suitable for all kinds of Electro-galvanized, hot-dipped galvanized diamond shape mesh
2. Mesh scope of weaving: 30--100mm(According to the requirements of customers, can provide 2 different types of knife molds)
3. Wire scope of weaving: 1.8—4.0mm
4. The output per minute: for example: if the mesh is 50*50mm,width 2000mm, the output will be 1M2/min
5. The machine is controlled by PLC automatic controller
6. Power consumption: 9KW

7. Weight of equipment: 4200kg
8. Outside size: main machine:6700*1430*1800mm 5100*1700*1250mm
9. Electric System:
　 1)Japan Mitsubishi PLC origin

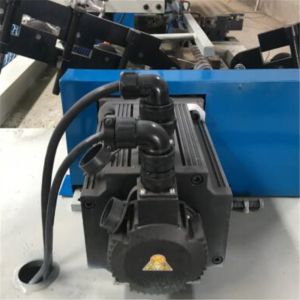

　 　2)Servo motor
　 　3)Low-voltage electrical from France Schneider
　 　4)Electric & Machinery from Taiwan Teco Electric
　　 5)Clutch from Taiwan YA CO., LTD.
10. Suitable wire to the machine: high-quality low-carbon steel wire, Galvanized Steel Wire, Stainless steel wire, Aluminum alloy wire, Aluminum-clad Steel Wire
11. Chain link Fence is extensively used as fences for playground and gardens, highway, railway, airport, port, residence, etc.
12. Mesh size for different Diameter of wire;

AN PING XI RUN METAL MESH CO.,LTD

Our company is located in the largest wire mesh production base in China, Canda Industrial Anping County, Hebei Province. The main products are chain link fence fabric and accessories series, metal decoration series, metal protection series.

Chain link fence fabric and accessories series include different size of chain link fence fabric and various accessories and connectors on the door. At present, the main fence accessories have more than 200 styles, involving more than 400 specifications, sizes and galvanized or spray-coated surfaces have reached international standards. Market standards, selling domestic and overseas markets all year round (US, Canada, Mexico, Middle East, Australia and European markets).

Metal decoration and metal protection series are mainly applicable to the interior and exterior decoration of exhibition halls, hotels, luxury living room screen installations,office buildings, luxury ballrooms, business halls, large shopping centers, sports centers, etc., roofs, walls, stairs, railings of characteristic buildings At the same time, it also plays a certain protective role, and is exported to domestic and foreign countries (Europe, America, Australia and other markets) all year round.

The company has strict and perfect production, quality inspection, packaging, logistics and other scientific management systems. Each product is processed and manufactured with strict monitoring and reliable quality. With 10 years of rich production experience, excellent product quality, reasonabke prices and Honest management, our company has won praise from customers at home and abroad ..

Anping Xirun Wire Mesh products Co., Ltd. sincerely hopes to work together with customers at home and abroad on the basis of mutual benefit to build a better future. We sincerely welcome Customers to visit our factory, guide and negotiate business.
