4'' 75mm Chain Link Fence Brace Band To Fence Post

    Buy cheap 4'' 75mm Chain Link Fence Brace Band To Fence Post from wholesalers

    Buy cheap 4'' 75mm Chain Link Fence Brace Band To Fence Post from wholesalers
    • Buy cheap 4'' 75mm Chain Link Fence Brace Band To Fence Post from wholesalers
    • Buy cheap 4'' 75mm Chain Link Fence Brace Band To Fence Post from wholesalers
    • Buy cheap 4'' 75mm Chain Link Fence Brace Band To Fence Post from wholesalers
    • Buy cheap 4'' 75mm Chain Link Fence Brace Band To Fence Post from wholesalers

    4'' 75mm Chain Link Fence Brace Band To Fence Post

    Ask Lasest Price
    Brand Name : XR
    Model Number : BB-006
    Certification : ISO
    Price : Negotiation
    Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram
    Supply Ability : 20000EA per month
    Delivery Time : 7-10 days after get your payment
    • Product Details
    • Company Profile

    4'' 75mm Chain Link Fence Brace Band To Fence Post

    4'' Chain Link Galvanized Pressed Steel Brace Band To Fence Post


    Brace Band Basic Information:


    Classification: Flat brace band, square brace band, 90 degree brace band.
    Material: Low carbon steel, hot galvanized, aluminum.
    Color: Silver, black, green, brown, etc.
    Specification can be customized by the request.
    Application: Fixed column and rail, enhance the stability of chain link fence.


    The 4 1/2" Brace Band is an essential piece for building chainlink fences and hoophouse frames. It is used to attach the chainlink top rail to a corner post, end post, gate post, or frame. The brace band wraps around a pipe with the use of a 5/16" x 2" nut and carriage bolt and features a heavy-duty galvanized steel composition that features a cost-effective standard 12 gauge steel for residential applications. Fits 4 1/2" (4 1/2" OD Actual).


    Brace Band Description:


    The 4 1/2" Standard Brace Band, also known as a rail end band, is an essential piece for building chain link fences and hoophouse frames. The Brace Band is used to attach the chain link top rail to a corner post, end post, gate post, or frame. This easy to install brace band has a high-quality, corrosion-resistant galvanized steel construction that features a standard 12 gauge ideal for residential applications. Fits 4 1/2" (4 1/2" OD Actual).

    Brace Band Features:

    • Fits 4 1/2" Fence Post
    • Long-Lasting, Corrosion-Resistant Material
    • Requires 5/16" x 2" Carriage Bolts And Nuts
    • Used To Attach Chain Link Fabric To Line And Terminal Posts
    • Standard 12 Gauge Steel Designed For Residential Applications

    Brace Band Specifications:

    • Band Height: 3/4"
    • Post Size: 4 1/2" (4 1/2" OD Actual)
    • Thickness: 0.11" (12 Gauge)
    • Carraige Bolt Size: 5/16" x 2"
    • Material: Heavy-Duty Galvanized Steel

    Where use brace bands?

    • Brace Bands are Used for Attaching the Chain Link Top Rail to a Corner, End, Gate Post
    • Brace Bands Wrap Around the Post on the Fence and Attach to a Rail End Holding the Fence Top Rail
    • Brace Band is Also Used for Gates and Fence Panels.
    • Brace Band is Galvanized Steel to Prevent Red Rust.
    • Available in Sizes from 1-3/8" to 6-5/8" - Measured by the "outside diameter" of the Post
    • Please measure carefully before ordering

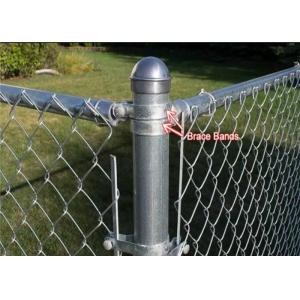

    • Here is the Image of Chain Link Parts Brace Band
    • Diffrent size of brace bands

    Brace Band Additional Information

    Brace Band SizeMeasure ByProduct MaterialRust Resistant?
    1-3/8''Outside DiameterGalvanized SteelYes
    1-5/8''Outside DiameterGalvanized SteelYes
    1-7/8''Outside DiameterGalvanized SteelYes
    2-3/8''Outside DiameterGalvanized SteelYes
    2-7/8''Outside DiameterGalvanized SteelYes
    3-1/2''Outside DiameterGalvanized SteelYes
    4''Outside DiameterGalvanized SteelYes
    6-5/8''Outside DiameterGalvanized SteelYes
