    Customized Galvanized Perforated Metal Mesh Cladding Panels Multi Hole Pattern

    Ask Lasest Price
    Brand Name : XR
    Model Number : PM-008
    Certification : ISO,CE
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000 PCS Per Month
    Delivery Time : 7-10 days after get the payment
    • Product Details
    • Company Profile

    Customized Galvanized Perforated Metal Mesh Cladding Panels Multi Hole Pattern

    Customized Size Perforated Metal Cladding Panels Galvanized Perforated Metal Mesh

    1. Material:
    Stainless steel, low carbon steel plate, galvanized PVC sheet, cold rolled coil, hot rolled plate, aluminum plate and so on.
    2. Types:
    Pattern punching net, forming punch net, special thickness punch net, special thin punch net, micro-hole punch net, line cutting perforation net.Laser perforation network and so on.
    3. Hole pattern:
    Rectangular hole, square hole, diamond hole, round hole, hexagonal hole, cross hole, triangle hole, slotted hole bore, long waist hole, the plum blossom, scales, bore hole pattern, a pentagram, irregular, the drum hole, etc.

    Product Information

    Main Parameter
    Name Perforated Mesh / Perforated Sheet / Punching Mesh / Decorative Mesh
    Material Aluminum Sheet,Steel Sheet,Galvanized Sheet
    Surface Finish

    (1)For aluminum material

    Mill finish

    Anodized finish(silver only)

    Powder coated (any color)

    PVDF (any color,smoother surface and longer life span)

    (2)For iron steel material

    Galvanized : Electric galvanized,Hot-dip galvanized

    Powder coated

    Sheet size(m) 1x1m, 1x2m, 1.2x2.4m, 1.22x2.44m,etc
    Thickness(mm) 2.0mm~10mm,standard:2.mm,2.5mm,3.0mm.
    Hole shape Sound ,square,diamond,hexagonal,star,flower,etc
    Perforation way Straight perforation,staggered perforation

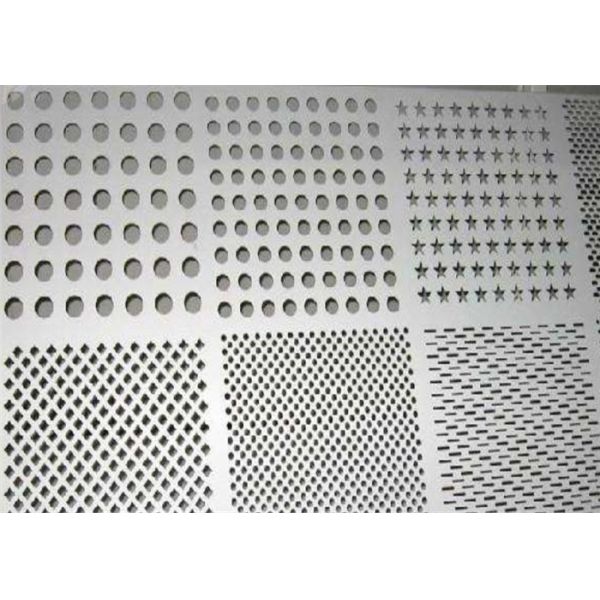

    Different Holes Image

    Customized Galvanized Perforated Metal Mesh Cladding Panels Multi Hole Pattern

    ROUND HOLES STAGGERED PATTERN
    HOLE CENTERS GAUGE / PLATE
    THICK.
    OPEN AREA
    .020" RD .045" Stag 26 18%
    1/32" RD 1/16" Stag 22 23%
    3/64" RD 5/64" Stag 24 33%
    3/64" RD 3/32" Stag 22 thru 18 23%
    1/16" RD 3/32 Stag 22 thru 16 40%
    1/16" RD 7/64" Stag 20 thru 16 30%
    1/16" RD 1/8" Stag 26 thru 16 23%
    5/64" RD 1/8" Stag 22 thru 14 35%
    3/32" RD 5/32" Stag 24 thru 14 33%
    3/32" RD 3/16" Stag 24 23%
    .117 RD 5/32" Stag 18 51%
    1/8" RD 3/16" Stag 24 thru 11 40%
    1/8" RD 7/32" Stag 14 thru 12 30%
    1/8" RD 1/4" Stag 14, 13 23%
    9/64" RD 3/16" Stag 18 51%
    5/32" RD 3/16" Stag 22 thru 16 63%
    5/32" RD 1/4" Stag 20 thru 10 35%
    3/16" RD 7/32" Stag 22 thru 16 67%
    3/16" RD 1/4" Stag 24 thru 12 51%
    3/16" RD 5/16" Stag 10, 3/16" 33%
    3/16" RD 3/8" Stag 14 thru 10 23%
    1/4" RD 5/16" Stag 20 thru 16 58%
    1/4" RD 3/8" Stag 26 thru 1/4" 40%
    17/64" RD 5/16" Stag 20 66%
    5/16" 7/16" Stag 20 thru 1/4” 46%
    3/8" RD 9/16" Stag 20 thru 1/4" 40%
    1/2" RD 11/16" Stag 20 thru 1/4" 48%
    1/2" RD 3/4" Stag 16 40%
    5/8" RD 7/8" Stag 10 thru 1/4" 46%
    3/4" RD 1" Stag 16 thru 1/4" 51%
    1" RD 1-3/8" Stag 10 thru 1/4" 48%
    1-1/4" RD 1-5/8" Stag 1/4" 54%
    1-1/2" RD 2" Stag 1/4" 51%
    2" RD 2-1/2" Stag 1/4" 58%
    2-1/2" RD 3" Stag 3/16" 63%
    3" RD 3-1/2" Stag 3/16" 67%
    4" RD 4-1/2" Stag 10 72%

    Customized Galvanized Perforated Metal Mesh Cladding Panels Multi Hole PatternCustomized Galvanized Perforated Metal Mesh Cladding Panels Multi Hole Pattern
